4525070

Single Swinging Wood Door with 15" X 34" Dual Glazed Vision Lite

Type: Acoustical
Perimeter Seal: Double Bubble
Bottom Seal: Super "H" Door Bottom
Door Thickness: 2.25" / 57.15mm
Min Frame Depth: 5.25" / 133.35mm
Max Leaf Size: 48" x 120"
STC Rating: 45
Max Fire Rating: 3/4 hr up to 8' height only
4525070

Single Swinging Wood Door with 15" X 34" Dual Glazed Vision Lite

Type: Acoustical
Perimeter Seal: Double Bubble
Bottom Seal: Super "H" Door Bottom
Door Thickness: 2.25" / 57.15mm
Min Frame Depth: 5.25" / 133.35mm
Max Leaf Size: 48" x 120"
STC Rating: 45
Max Fire Rating: 3/4 hr up to 8' height only
Transmission Loss in dB/Hertz - 1/3 Octave Bands
100
33
125
30
160
31
200
35
250
35
315
38
400
41
500
42
630
42
800
44
1000
45
1250
45
1600
47
2000
48
2500
49
3150
49
4000
50
5000
50

Note: This door is 2-1/4" thick. Any hardware selected must accomodate this thickness.

Super "H" Door Bottom

Overly's super "H" door bottom is the only choice for unbeatable sound control. Always used in conjunction with our cam-lift hinges, this door bottom compresses tightly against the floor. We recommend smooth level sealing surfaces for this door bottom. Uneven or abrasive flooring may prematurely wear the door bottom. A smooth raised threshold is recommended when using this door bottom.

UL Fire Ratings

In addition to acoustical testing, Overly has successfully tested this product to the latest UL fire test standard UL10C/UBC 7-2 (positive pressure).

Recommended Hardware:

Locks:

CylindricalANSI A156.2, Series 4000 Grade 1
3" maximum rose diameter
Suggested Models:
  • Best 94K
  • Schlage "ND" Series
  • Sargent 11 Series
  • Corbin/Russwin CL3300
MortiseANSI A156.13 Series 1000 Grade 1
3" maximum rosette diameter
Suggested Models:
  • Best 35H
  • Sargent 8200
  • Schlage "L" Series
  • Corbin / Russwin ML2000

Exit Devices:

MortiseANSI 156.3, Grade 1
Suggested Models:
  • Sargent 8300
  • Von Duprin 9875/9975
RimANSI 156.3, Grade 1
Suggested Models:
  • Sargent 8800
  • Corbin/Russwin ED5200
  • Von Duprin 98/99
Surface Vertical RodANSI A156.3, Grade 1
Suggested Models:
  • Sargent 8700
  • Von Duprin 9927
  • Corbin/Russwin ED6400

Hinges:

Full Mortise Cam-Lift
Suggested Models:
  • Overly MCL-500

Thresholds:

Saddle
Must have smooth top, no ridges or grooves
Suggested Models:
  • Reese S105
  • Pemko 154
  • NGP 412
  • Zero 164

Closers:

Surface MountedANSI 156.4 Grade 1
Rigid arms are not recommended.
Suggested Models:
  • Corbin/Russwin DC2000, DC3000, DC4000
  • Dorma 8600, 8900
  • LCN 4010, 4020, 4041 Super Smoothie
  • Norton 7500, 8500
  • Sargent 250, 251, 350, 351, 1230, 1231, 1250, 1251

Support Documents:

Catalogs

Acoustical Products Catalog

CAT-001
 Rev: 11
.pdf

Acoustical Wood Door Catalog

CAT-004
 Rev: 8
.pdf
Cut Sheets

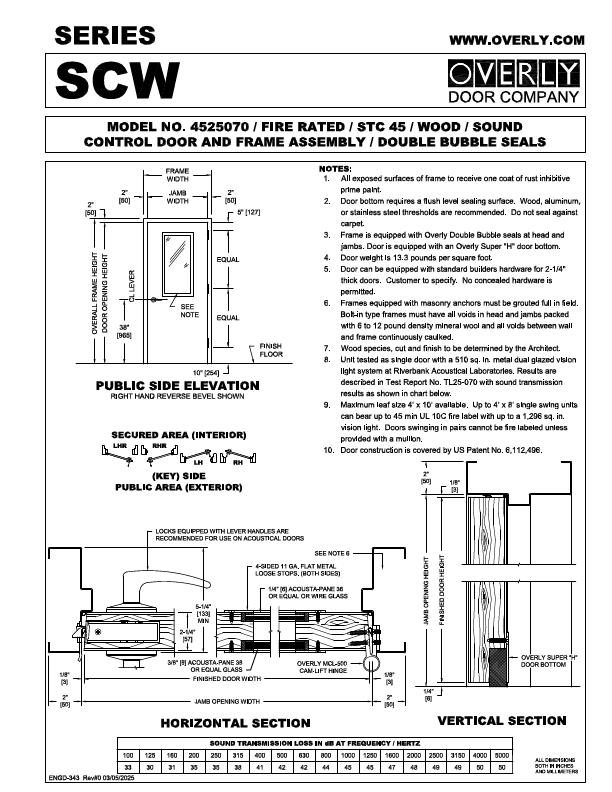

4525070 Cut Sheet

ENGD-343
 Rev: 0
.pdf

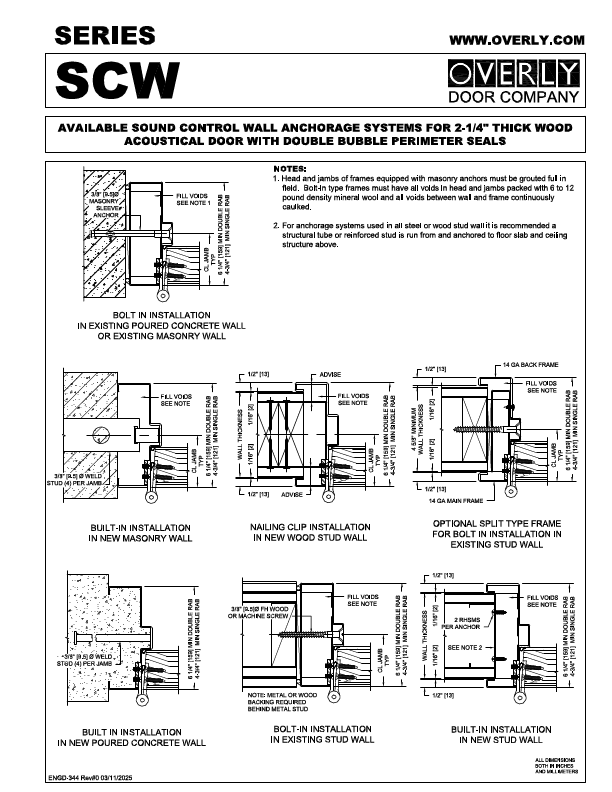

Available Sound Control Wall Anchorage Systems for 2-1/4" Thick Wood Acoustical Door with Double Bubble Seals

ENGD-344
 Rev: 0
.pdf

Typical Sound Control Sill Systems For 2-1/4" Thick Wood Acoustical Door With Super "H" Door Bottom

ENGD-287
 Rev: 1
.pdf
Data Sheets

Acoustical Wood Door Data Sheet

SALD-002
 Rev: 6
.pdf

Acoustical Wood Door Veneer and Finish Approval Form

ENGD-037
 Rev: 3
.pdf
Elevation

Elevation 510 sq in

DET-219
 Rev: 0
.dwg

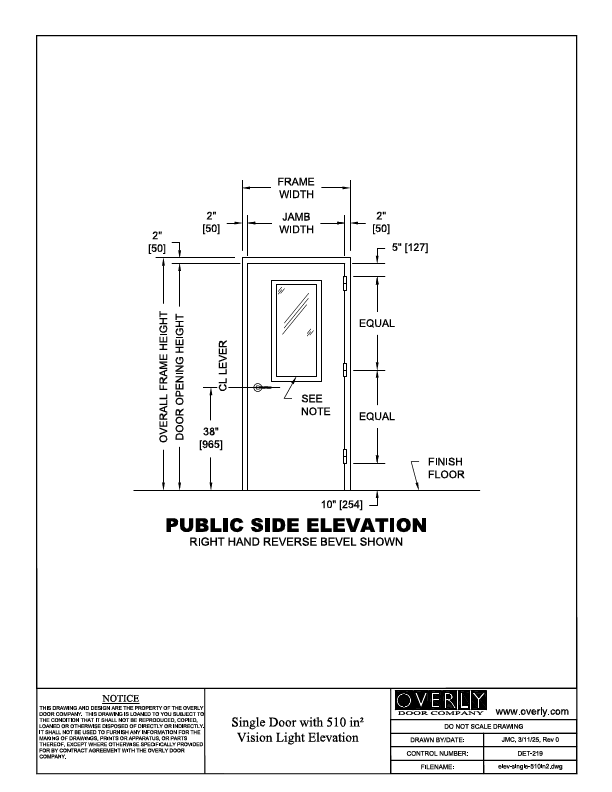

Vision Light Single Door Elevation

DET-219
 Rev: 0
.pdf
Handing Charts

Handing Chart for Single Swing Door

DET-046
 Rev: 0
.dwg

Handing Chart for Single Swing Door

DET-046
 Rev: 0
.pdf

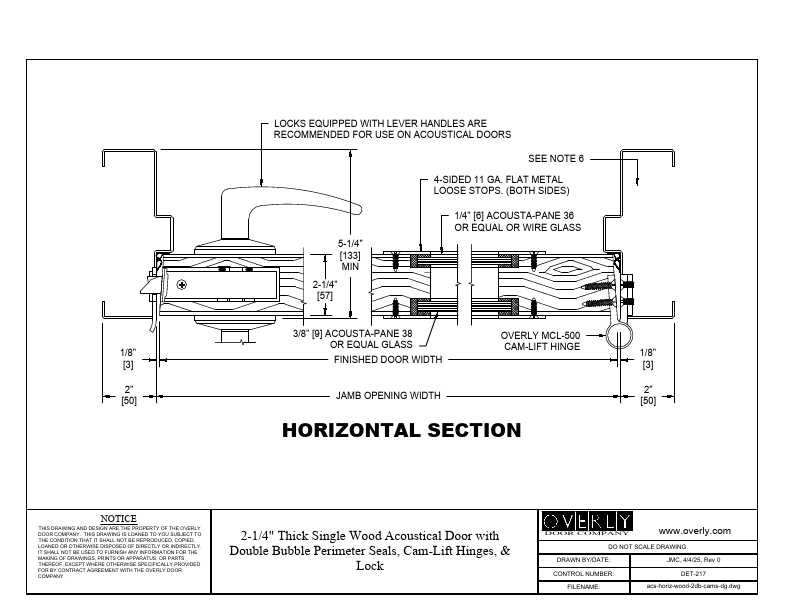

Horizontal Section

2-1/4" Thick Single Wood Acoustical Door with Double Bubble Perimeter Seals, Cam-Lift Hinges, & Lock

DET-217
 Rev: 0
.dwg

2-1/4" Thick Single Wood Acoustical Door with Double Bubble Perimeter Seals, Cam-Lift Hinges, & Lock

DET-217
 Rev: 0
.pdf
Installation Instructions

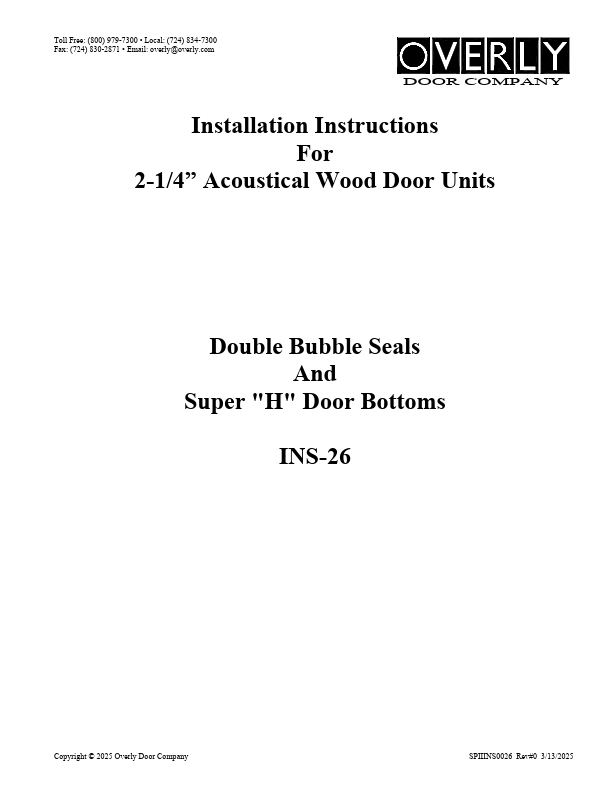

Installation Instructions for 2-1/4" Acoustical Wood Door units

SPIIINS0026
 Rev: 0
.pdf

Supplemental Installation Instructions for Split-Frame Acoustical Doors - Exposed Fastener

SPIIINS0098
 Rev: 0
.pdf

Supplemental Installation Instructions for Split-Frame Acoustical Doors - Hidden Fastener

SPIIINS0099
 Rev: 0
.pdf
Specifications

Sound Retardant Swinging Wood Door Assemblies Specification

ENGD-023
 Rev: 4
.pdf

Sound Retardant Swinging Wood Door Assemblies Specification

ENGD-023
 Rev: 4
.doc
Technical Bulletins

Acoustical Wood Door Limitations

ENGD-071
 Rev: 7
.pdf

Required Jamb Openings Widths to Meet ADA Clearance Requirements for 1-3/4", 1-7/8", 2-1/4", 2-1/2", 2-3/4", and 3" Thick Doors

TBD04
 Rev: 2
.pdf

SCIF Lock Compatibility Overview

SCIF
 Rev: 0
.pdf

Sound Retardant Doors and Windows Monograph

ENGD-038
 Rev: 3
.pdf

Wood Sound Retardant Door Hardware Information Bulletin

ENGD-019
 Rev: 1
.pdf
Templates

MCL-500 Cam-Lift Hinge Template

ENGD-004
 Rev: 3
.pdf
Test Reports

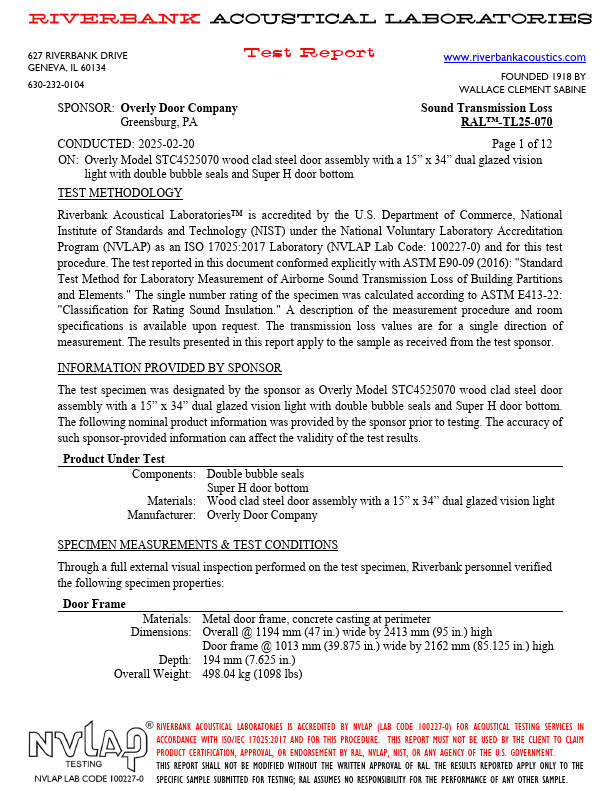

Acoustical Test Report - STC4525070

TL25-070
 Rev: 0
.pdf

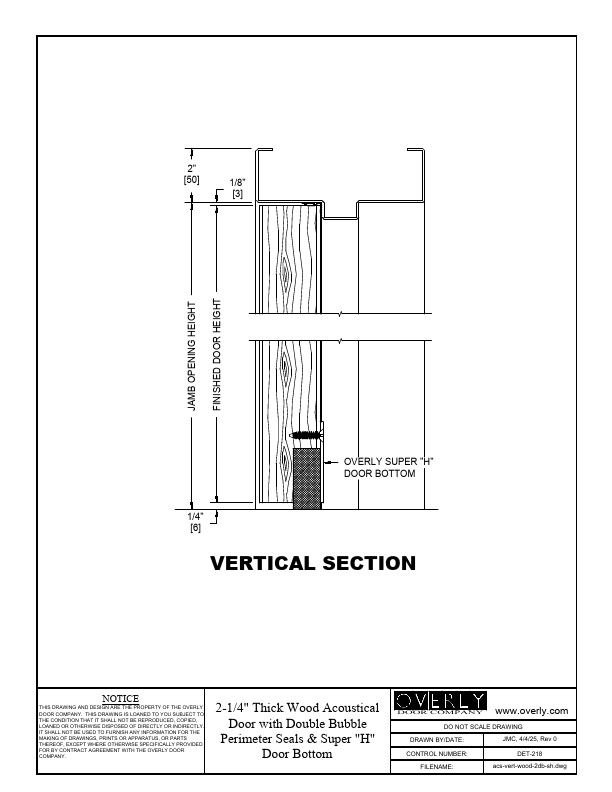

Vertical Section

2-1/4" thick Wood Acoustical Door with Double Bubble Perimeter Seals and Super H Door Bottom

DET-218
 Rev: 0
.pdf

2-1/4" thick Wood Acoustical Door with Double Bubble Perimeter Seals and Super H Door Bottom

DET-218
 Rev: 0
.dwg
