4325198

Single Swinging Metal Door with 20" x 34" Single Glazed Vision Light with UL Level 3 Bullet Resistance

Type: Acoustical, Acoustical & Bullet Resistant, Bullet Resistant

Perimeter Seal:	Single Magnetic Gasket w/Felt
Bottom Seal:	Semi-mortised Automatic
Door Thickness:	1.875" / 47.625mm
Min Frame Depth:	4.75" / 120.65mm
Max Leaf Size:	48" x 120"
STC Rating:	43
Max Fire Rating:	N/A

4325198

Single Swinging Metal Door with 20" x 34" Single Glazed Vision Light with UL Level 3 Bullet Resistance

Type: Acoustical, Acoustical & Bullet Resistant, Bullet Resistant

Perimeter Seal:	Single Magnetic Gasket w/Felt
Bottom Seal:	Semi-mortised Automatic
Door Thickness:	1.875" / 47.625mm
Min Frame Depth:	4.75" / 120.65mm
Max Leaf Size:	48" x 120"
STC Rating:	43
Max Fire Rating:	N/A

Glass Specifications:

Standard Bent GCP UL Level 3 Specification

Transmission Loss in dB/Hertz - 1/3 Octave Bands

100

32

125

32

160

32

200

32

250

35

315

37

400

39

500

39

630

44

800

44

1000

44

1250

43

1600

44

2000

46

2500

49

3150

49

4000

48

5000

47

Semi-Mortised Door Bottom

A semi-mortised automatic door bottom is always supplied with this assembly. This door bottom allows for a higher undercut. Automatic door bottoms are a good choice when flooring conditions are unknown, as they offer up to a 3/4" undercut.

Single Magnetic Perimeter Seals

This door is equipped with a single Magnetic door sealing system. It consists of a single magnetic perimeter seal. Magnetic seals allow the use of a wide range of electrical hardware, such as electric locks and strikes. Due to their zero preload against the door leaf, the sensitive electronics are not compromised.

Recommended Hardware:

Locks:

CylindricalANSI A156.2, Series 4000 Grade 1

3-3/4" Back-set Required

Suggested Models:

Best 94K
Schlage "ND" Series
Sargent 10 Series
Corbin/Russwin CL3300

MortiseANSI A156.13 Series 1000 Grade 1

3" maximum rosette diameter

Suggested Models:

Best 35H
Sargent 8200
Schlage "L" Series
Corbin / Russwin ML2000

Exit Devices:

MortiseANSI 156.3, Grade 1

3" maximum case width

Suggested Models:

Sargent 8300
Von Duprin 9875/9975

RimANSI 156.3, Grade 1

Suggested Models:

Sargent 8800
Corbin/Russwin ED5200
Von Duprin 98/99

Hinges:

Heavy WeightANSI A5111 or A8111

5" x 4-1/2"

Suggested Models:

Hager BB1168
Hager BB1199
McKinney T4A3786
McKinney T4A3386
Stanley FBB168
Stanley FBB199

Thresholds:

Saddle

Must have smooth top, no ridges or grooves

Suggested Models:

Reese S105
Pemko 154
NGP 412
Zero 164

Closers:

Surface MountedANSI 156.4 Grade 1

Suggested Models:

Corbin/Russwin DC3000
Dorma 640, 540, 7600, 7800, TS83
LCN 4010, 4020, 4041 Super Smoothie
Norton 7500, 8500
Sargent 250, 251, 350, 351, 1230, 1231, 1250, 1251

Support Documents:

Catalogs

METAL SWINGING ACOUSTICAL/ BULLET RESISTANT DOORS

CAT-12

Rev: 1

.pdf

Cut Sheets

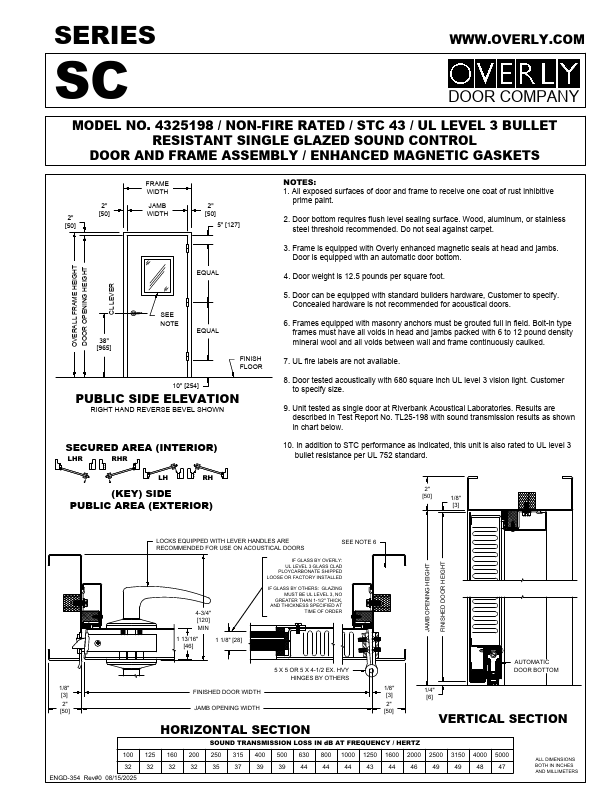

4325198-Cut Sheet

ENGD-354

Rev: 1

.pdf

Available Sound Control Wall Anchorage Systems For 1-3/4" Thick Metal Acoustical Door With Single Magnetic Perimeter Seals

ENGD-095

Rev: 3

.pdf

Typical Sound Control Sill System for 1 3/4" Nom. Thick Metal acoustical door with Automatic door Bottom

ENGD-362

Rev: 0

.pdf

Data Sheets

Acoustical Metal Door Data Sheet

SALD-001

Rev: 5

.pdf

Elevation

Single Door with 300 in² Vision Light Elevation

DET-040

Rev: 0

.dwg

Single Door with 300 in² Vision Light Elevation

DET-040

Rev: 0

.pdf

Handing Charts

Handing Chart for Single Swing Door

DET-046

Rev: 0

.dwg

Handing Chart for Single Swing Door

DET-046

Rev: 0

.pdf

Horizontal Section

1-3/4" Thick Single UL Level 3 Metal Bullet Resistant Acoustical Door with Double Bubble Seals, Butt Hinges, Lock, & Single Glazed Vision Light

DET-164

Rev: 1

.dwg

1-3/4" Thick Single UL Level 3 Metal Bullet Resistant Acoustical Door with Enhanced Magnetic Seals, Butt Hinges, Lock, & Single Glazed Vision Light

DET-163

Rev: 1

.dwg

Installation Instructions

Enhanced Magnetic Seal Installation Instructions

SPIIINS0061

Rev: 0

.pdf

Installation Instructions for 1-3/4" Acoustical Door Units with Enhanced Angled Magnetic Seals and Automatic Door Bottoms

SPIIINS0062

Rev: 0

.pdf

Supplemental Installation Instructions for Split-Frame Acoustical Doors - Exposed Fastener

SPIIINS0098

Rev: 0

.pdf

Supplemental Installation Instructions for Split-Frame Acoustical Doors - Hidden Fastener

SPIIINS0099

Rev: 0

.pdf

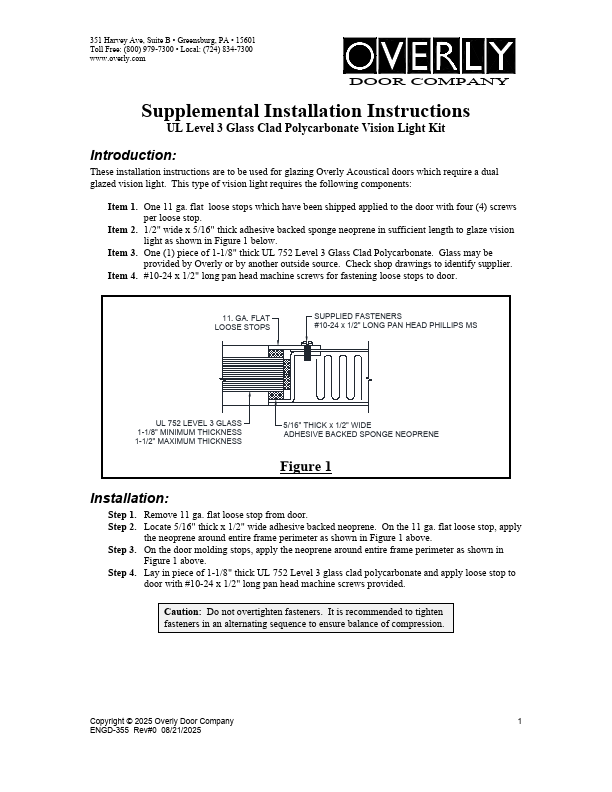

Supplemental Installation Instructions UL Level 3 GCP Vision Light Kit

ENGD-355

Rev: 0

.pdf

Specifications

Sound Retardant Swinging Metal Door Assemblies Specification

ENGD-021

Rev: 3

.doc

Sound Retardant Swinging Metal Door Assemblies Specification

ENGD-021

Rev: 3

.pdf

UL Ratings of Bullet-Resistant Materials

ENGD-066

Rev: 2

.pdf

Technical Bulletins

Metal Sound Retardant Door Hardware Information Bulletin

ENGD-018

Rev: 12

.pdf

Overly Metal Bullet Resistant Door Units Hardware Requirements and Recommendations

TBD

Rev: 2

.pdf

SCIF Lock Compatibility Overview

SCIF

Rev: 0

.pdf

Sound Retardant Doors and Windows Monograph

ENGD-038

Rev: 3

.pdf

Test Reports

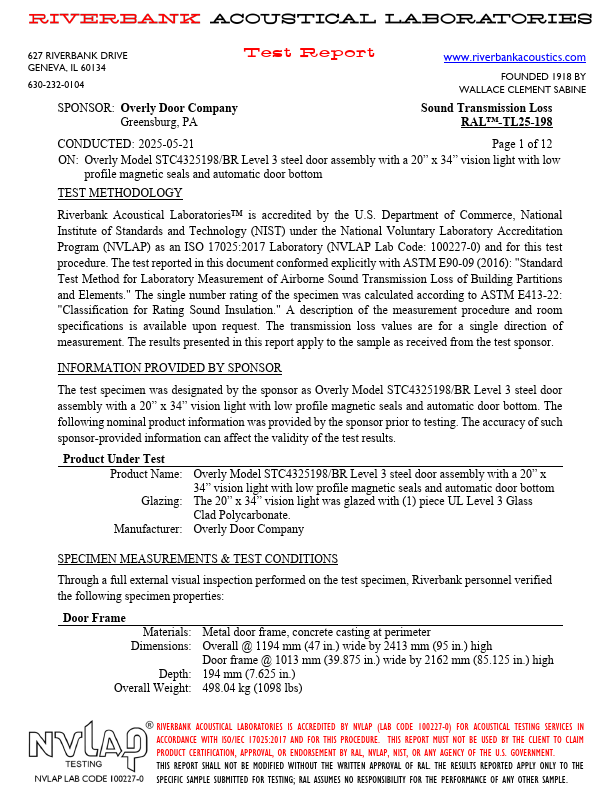

Acoustical Test Report - STC4325198/BR Level 3

TL25-198

Rev: 0

.pdf

Test for compliance to ADA Requirements for Door Openings with Level Swing Hinges

PHY-32473

Rev: 1

.pdf

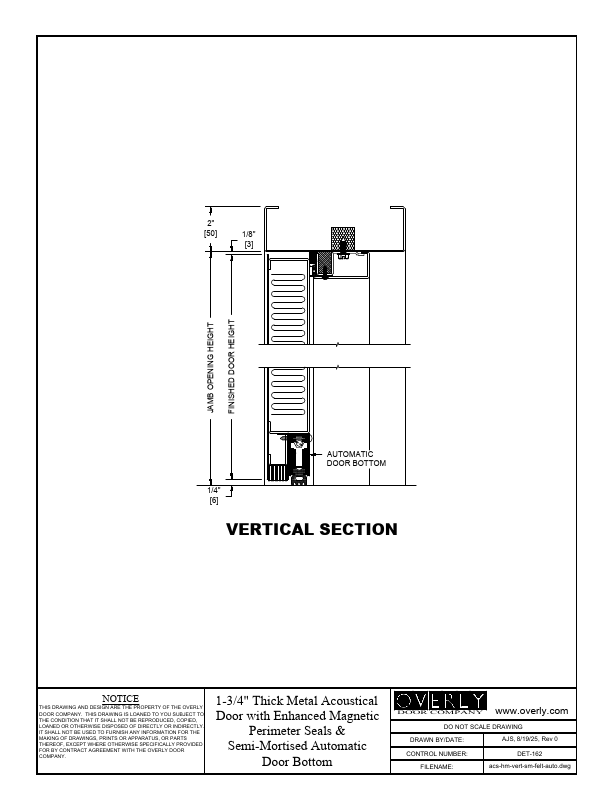

Vertical Section

1-3/4" Thick Metal Acoustical Door with Enhanced Magnetic Perimeter seals & Semi-mortised Automatic Door Bottom

DET-162

Rev: 0

.dwg

1-3/4" Thick Metal Acoustical Door with Enhanced Magnetic Perimeter seals & Semi-mortised Automatic Door Bottom

DET-162

Rev: 0

.pdf
