Single Swinging Wood Door with 15" X 34" Dual Glazed Vision Lite

Type: Acoustical
Perimeter Seal: Single "H" Gasket
Bottom Seal: Super "H" Door Bottom
Door Thickness: 2.25" / 57.15mm
Min Frame Depth: 5.25" / 133.35mm
Max Leaf Size: 48" x 120"
STC Rating: 46
Max Fire Rating: 3/4 hr up to 8' height only
4625061

Single Swinging Wood Door with 15" X 34" Dual Glazed Vision Lite

Type: Acoustical
Perimeter Seal: Single "H" Gasket
Bottom Seal: Super "H" Door Bottom
Door Thickness: 2.25" / 57.15mm
Min Frame Depth: 5.25" / 133.35mm
Max Leaf Size: 48" x 120"
STC Rating: 46
Max Fire Rating: 3/4 hr up to 8' height only
Transmission Loss in dB/Hertz - 1/3 Octave Bands
100
32
125
29
160
34
200
35
250
35
315
39
400
45
500
45
630
43
800
44
1000
46
1250
47
1600
48
2000
49
2500
51
3150
52
4000
52
5000
51

Note: This door is 2-1/4" thick. Any hardware selected must accomodate this thickness.

Single "H" Perimeter Seals

This door is equipped with our patented single Super "H" door sealing system. It consists of a single compression type perimeter seal, along with a metal retainer and cover. Compression seals typically offer higher acoustical ratings The seal is composed of a felt/neoprene combination that forms a tight perimeter seal.

Super "H" Door Bottom

Overly's super "H" door bottom is the only choice for unbeatable sound control. Always used in conjunction with our cam-lift hinges, this door bottom compresses tightly against the floor. We recommend smooth level sealing surfaces for this door bottom. Uneven or abrasive flooring may prematurely wear the door bottom. A smooth raised threshold is recommended when using this door bottom.

UL Fire Ratings

In addition to acoustical testing, Overly has successfully tested this product to the latest UL fire test standard UL10C/UBC 7-2 (positive pressure).

Recommended Hardware:

Locks:

CylindricalANSI A156.2, Series 4000 Grade 1
3-3/4" Back-set Required
Suggested Models:
  • Best 94K
  • Schlage "ND" Series
  • Sargent 10 Series
  • Corbin/Russwin CL3300
MortiseANSI A156.13 Series 1000 Grade 1
3" maximum rosette diameter
Suggested Models:
  • Best 35H
  • Sargent 8200
  • Schlage "L" Series
  • Corbin / Russwin ML2000

Exit Devices:

MortiseANSI 156.3, Grade 1
Suggested Models:
  • Sargent 8300
  • Von Duprin 9875/9975
RimANSI 156.3, Grade 1
Suggested Models:
  • Sargent 8800
  • Corbin/Russwin ED5200
  • Von Duprin 98/99
Surface Vertical RodANSI A156.3, Grade 1
Suggested Models:
  • Sargent 8700
  • Von Duprin 9927
  • Corbin/Russwin ED6400

Hinges:

Full Mortise Cam-Lift
Suggested Models:
  • Overly MCL-500

Thresholds:

Saddle
Must have smooth top, no ridges or grooves
Suggested Models:
  • Reese S105
  • Pemko 154
  • NGP 412
  • Zero 164

Closers:

Surface MountedANSI 156.4 Grade 1
Rigid arms are not recommended.
Suggested Models:
  • Corbin/Russwin DC2000, DC3000, DC4000
  • Dorma 8600, 8900
  • LCN 4010, 4020, 4041 Super Smoothie
  • Norton 7500, 8500
  • Sargent 250, 251, 350, 351, 1230, 1231, 1250, 1251

Support Documents:

Catalogs

Acoustical Products Catalog

CAT-001
Rev: 11
.pdf

Acoustical Wood Door Catalog

CAT-004
Rev: 8
.pdf
Cut Sheets

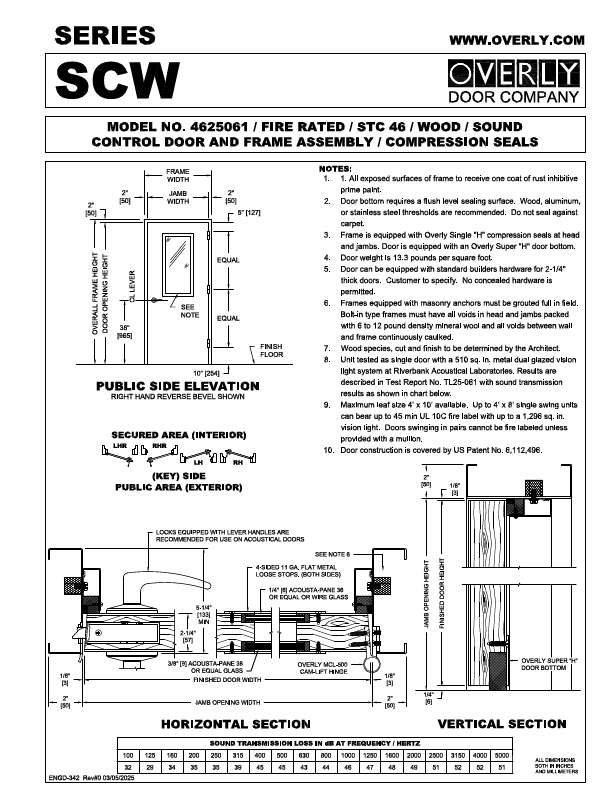

4625061 Cut Sheet

ENGD-342
Rev: 0
.pdf

Available Sound Control Wall Anchorage Systems For 2-1/4" Thick Wood Acoustical Door With Single "H" Compression Perimeter Seals

ENGD-286
Rev: 1
.pdf

Typical Sound Control Sill Systems For 2-1/4" Thick Wood Acoustical Door With Super "H" Door Bottom

ENGD-287
Rev: 1
.pdf
Data Sheets

Acoustical Wood Door Data Sheet

SALD-002
Rev: 6
.pdf

Acoustical Wood Door Veneer and Finish Approval Form

ENGD-037
Rev: 3
.pdf
Elevation

Elevation 510 sq in

DET-219
Rev: 0
.dwg

Vision Light Single Door Elevation

DET-219
Rev: 0
.pdf
Handing Charts

Handing Chart for Single Swing Door

DET-046
Rev: 0
.pdf

Handing Chart for Single Swing Door

DET-046
Rev: 0
.dwg
Horizontal Section

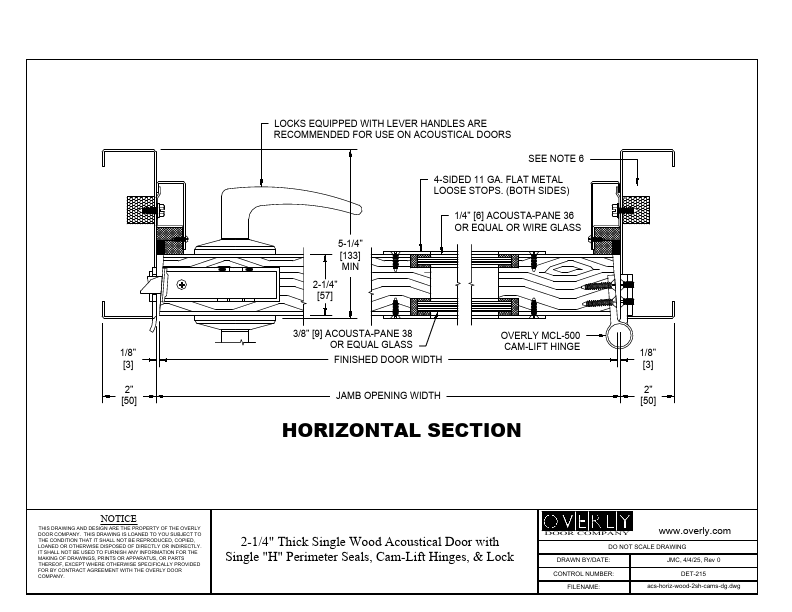

2-1/4" thick Wood Acoustical Door with Single "H" Perimeter Seals, Cam-Lift Hinges, & Lock

DET-215
Rev: 0
.dwg

2-1/4" thick Wood Acoustical Door with Single "H" Perimeter Seals, Cam-Lift Hinges, & Lock

DET-215
Rev: 0
.pdf
Installation Instructions

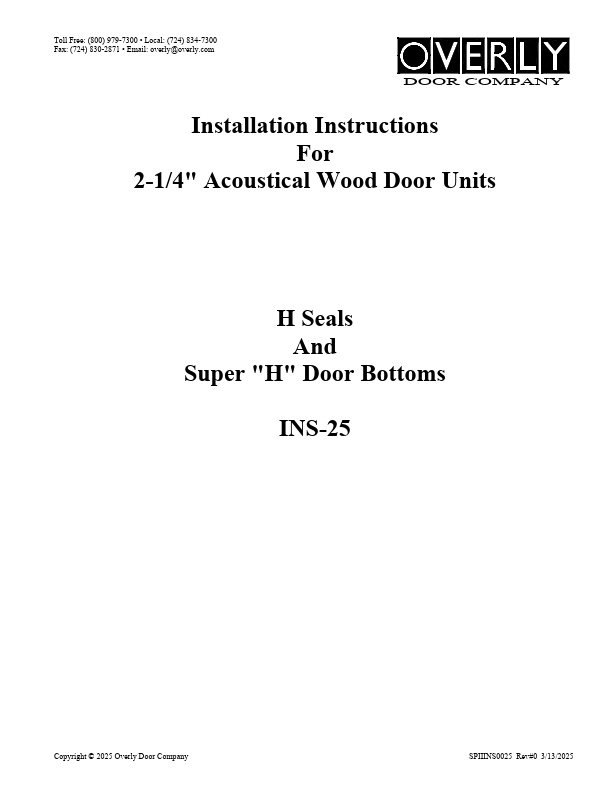

Installation Instructions for 2-1/4" Acoustical Wood Door units

SPIIINS0025
Rev: 0
.pdf

Supplemental Installation Instructions for Split-Frame Acoustical Doors - Exposed Fastener

SPIIINS0098
Rev: 0
.pdf

Supplemental Installation Instructions for Split-Frame Acoustical Doors - Hidden Fastener

SPIIINS0099
Rev: 0
.pdf
Specifications

Sound Retardant Swinging Wood Door Assemblies Specification

ENGD-023
Rev: 4
.pdf

Sound Retardant Swinging Wood Door Assemblies Specification

ENGD-023
Rev: 4
.doc
Technical Bulletins

Acoustical Wood Door Limitations

ENGD-071
Rev: 7
.pdf

Required Jamb Openings Widths to Meet ADA Clearance Requirements for 1-3/4", 1-7/8", 2-1/4", 2-1/2", 2-3/4", and 3" Thick Doors

TBD04
Rev: 2
.pdf

SCIF Lock Compatibility Overview

SCIF
Rev: 0
.pdf

Wood Sound Retardant Door Hardware Information Bulletin

ENGD-019
Rev: 1
.pdf
Templates

MCL-500 Cam-Lift Hinge Template

ENGD-004
Rev: 3
.pdf
Test Reports

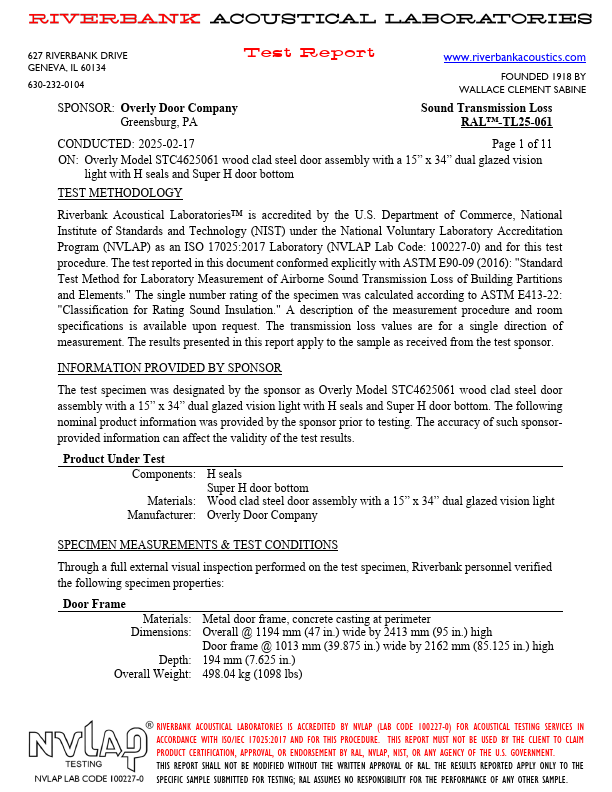

Acoustical Test Report - STC4625061

TL25-061
Rev: 0
.pdf
Vertical Section

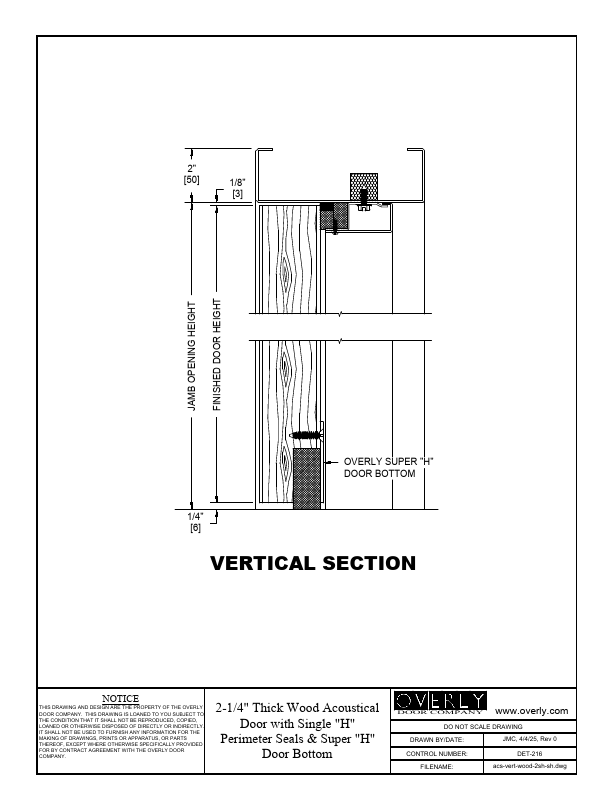

2-1/4" thick Wood Acoustical Door with Single "H" Perimeter Seals and Super H Door Bottom
