4125192

Single Swinging Metal Door With 15" x 20" Single Glazed Vision Lite with UL Level 3 Bullet Resistance

Type: Acoustical, Acoustical & Bullet Resistant, Bullet Resistant
Perimeter Seal: Double Bubble
Bottom Seal: Semi-mortised Automatic
Door Thickness: 1.875" / 47.625mm
Min Frame Depth: 4.75" / 120.65mm
Max Leaf Size: 48"x120"
STC Rating: 41
Max Fire Rating: N/A
4125192

Single Swinging Metal Door With 15" x 20" Single Glazed Vision Lite with UL Level 3 Bullet Resistance

Type: Acoustical, Acoustical & Bullet Resistant, Bullet Resistant
Perimeter Seal: Double Bubble
Bottom Seal: Semi-mortised Automatic
Door Thickness: 1.875" / 47.625mm
Min Frame Depth: 4.75" / 120.65mm
Max Leaf Size: 48"x120"
STC Rating: 41
Max Fire Rating: N/A
Glass Specifications:

Standard Bent GCP UL Level 3 Specification

Transmission Loss in dB/Hertz - 1/3 Octave Bands
100
31
125
29
160
30
200
30
250
33
315
34
400
35
500
35
630
37
800
39
1000
41
1250
43
1600
44
2000
46
2500
50
3150
51
4000
49
5000
47

Semi-Mortised Door Bottom

A semi-mortised automatic door bottom is always supplied with this assembly. This door bottom allows for a higher undercut. Automatic door bottoms are a good choice when flooring conditions are unknown, as they offer up to a 3/4" undercut.

Recommended Hardware:

Locks:

CylindricalANSI A156.2, Series 4000 Grade 1
3" maximum rose diameter
Suggested Models:
  • Best 94K
  • Schlage "ND" Series
  • Sargent 11 Series
  • Corbin/Russwin CL3300

Exit Devices:

MortiseANSI 156.3, Grade 1
Suggested Models:
  • Sargent 8300
  • Von Duprin 9875/9975
RimANSI 156.3, Grade 1
Suggested Models:
  • Sargent 8800
  • Corbin/Russwin ED5200
  • Von Duprin 98/99

Hinges:

Heavy WeightANSI A5111 or A8111
5" x 4-1/2"
Suggested Models:
  • Hager BB1168
  • Hager BB1199
  • McKinney T4A3786
  • McKinney T4A3386
  • Stanley FBB168
  • Stanley FBB199

Thresholds:

Saddle
Must have smooth top, no ridges or grooves
Suggested Models:
  • Reese S105
  • Pemko 154
  • NGP 412
  • Zero 164

Closers:

Surface MountedANSI 156.4 Grade 1
Suggested Models:
  • Corbin/Russwin DC3000
  • Dorma 640, 540, 7600, 7800, TS83
  • LCN 4010, 4020, 4041 Super Smoothie
  • Norton 7500, 8500
  • Sargent 250, 251, 350, 351, 1230, 1231, 1250, 1251

Support Documents:

Catalogs

METAL SWINGING ACOUSTICAL/ BULLET RESISTANT DOORS

CAT-12
 Rev: 1
.pdf
Cut Sheets

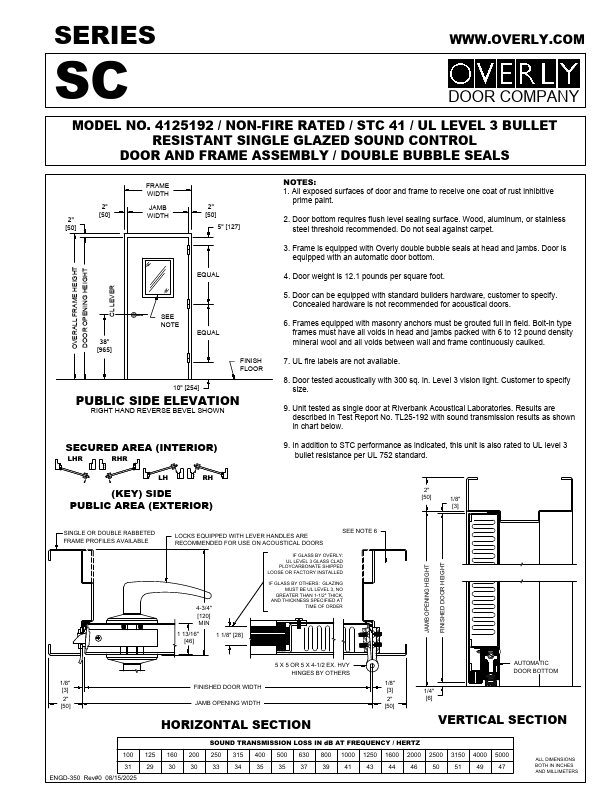

4125192-Cut Sheet

ENGD-350
 Rev: 1
.pdf

Available Sound Control Wall Anchorage Systems For 1-3/4" Thick Metal Acoustical Door With Double Bubble Perimeter Seals

ENGD-258
 Rev: 2
.pdf

Typical Sound Control Sill System for 1 3/4" Nom. Thick Metal acoustical door with Automatic door Bottom

ENGD-362
 Rev: 0
.pdf
Data Sheets

Acoustical Metal Door Data Sheet

SALD-001
 Rev: 5
.pdf
Elevation

Single Door with 300 in2 Vision Light Elevation

DET-040
 Rev: 0
.dwg

Single Door with 300 in2 Vision Light Elevation

DET-040
 Rev: 0
.pdf
Handing Charts

Handing Chart for Single Swing Door

DET-046
 Rev: 0
.pdf

Handing Chart for Single Swing Door

DET-046
 Rev: 0
.dwg
Horizontal Section

1-3/4" Thick Single UL Level 3 Metal Bullet Resistant Acoustical Door with Double Bubble Seals, Butt Hinges, Lock, & Single Glazed Vision Light

DET-164
 Rev: 1
.pdf

1-3/4" Thick Single UL Level 3 Metal Bullet Resistant Acoustical Door with Double Bubble Seals, Butt Hinges, Lock, & Single Glazed Vision Light

DET-164
 Rev: 1
.dwg
Installation Instructions

Installation Instructions for Double Bubble Seals on Metal Doors

SPIIINS0044
 Rev: 4
.pdf

Supplemental Installation Instructions UL Level 3 GCP Vision Light Kit

ENGD-355
 Rev: 0
.pdf
Technical Bulletins

Metal Sound Retardant Door Hardware Information Bulletin

ENGD-018
 Rev: 12
.pdf

Overly Metal Bullet Resistant Door Units Hardware Requirements and Recommendations

TBD
 Rev: 2
.pdf

SCIF Lock Compatibility Overview

SCIF
 Rev: 0
.pdf

Sound Retardant Doors and Windows Monograph

ENGD-038
 Rev: 3
.pdf
Test Reports

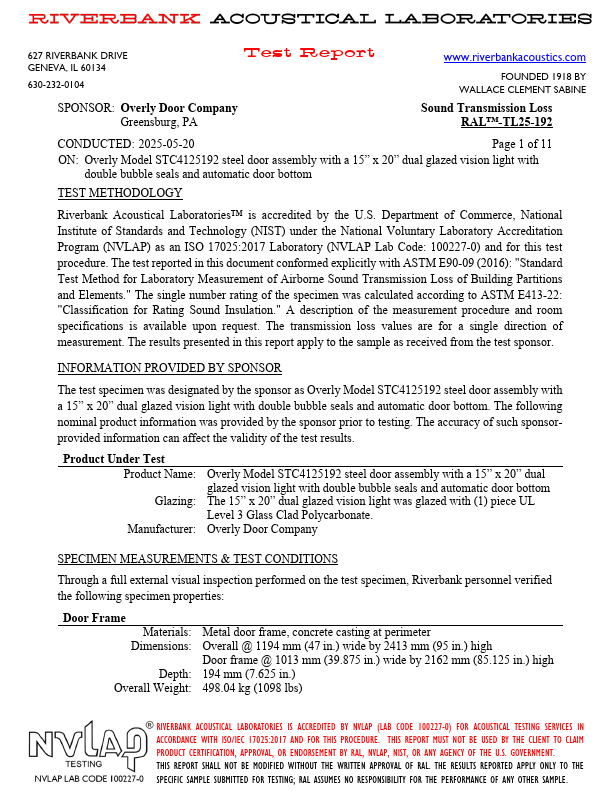

Acoustical Test Report - STC4125192/BR Level 3

TL25-192
 Rev: 0
.pdf

Test for compliance to ADA Requirements for Door Openings with Level Swing Hinges

PHY-32473
 Rev: 1
.pdf
Vertical Section

1-3/4" Thick Metal Acoustical Door with Double Bubble Perimeter Seals & Semi-Mortised Automatic Door Bottom

DET-074
 Rev: 0
.dwg

1-3/4" Thick Metal Acoustical Door with Double Bubble Perimeter Seals & Semi-Mortised Automatic Door Bottom

DET-074
 Rev: 0
.pdf

2-1/8" Thick Metal Acoustical Door with Single "H" Perimeter Seals & Super "H" Door Bottom

DET-021
 Rev: 0
.dwg
Wall Section

Single Magnetic Seals - Bolt In Installation in Existing Poured Concrete Wall or Existing Masonry Wall

DET-066
 Rev: 0
.pdf
